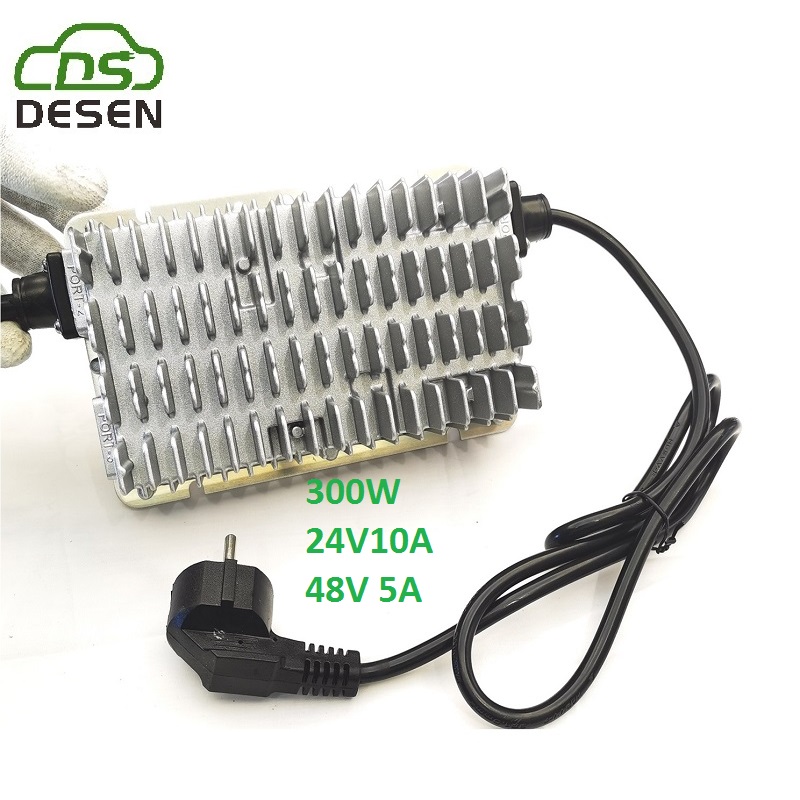

300W Electric Vehicle Lead Acid Lithium LiFePO4 Battery Charger

300W Series IP67 Sealed Battery Charger Specification

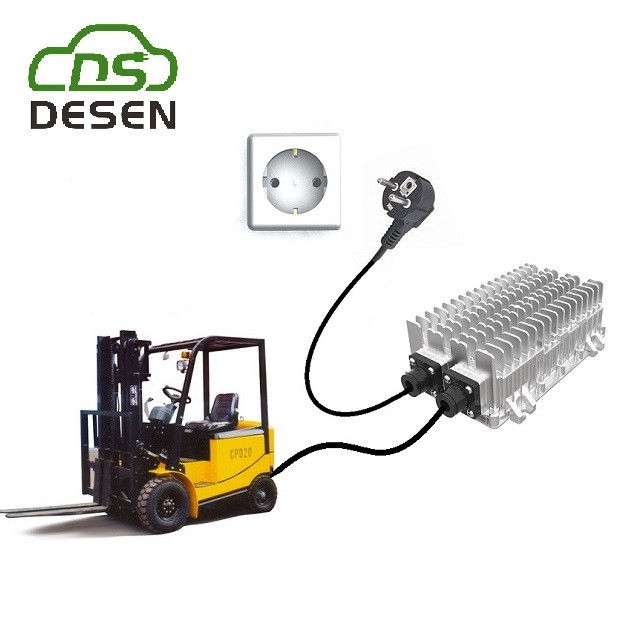

    DESEN ADS Series of high frequency PWM chargers have a compact and sealed structure design, they are suitable for flooded lead acid batteries, sealed lead acid batteries and Lithium ion batteries. They are used to cycle charge or floating charge batteries in electric cars, sightseeing vehicles, patrol vehicles, fork lifts, communication, electric power, boats, Lawn-Mowers, Agriculture Equipment, etc.

     Active PFC and LLC new technology guarantee a good Power Factor and a very high efficiency. The reliable hardware protections and Impeccable charging strategies ensure a safe charging process.

KEY FEATURES

• AC input voltage range:  85~265Vac; 45-65Hz
• AC input rated current: <3.3A@100VAC, 1.5A @ 220VAC
• Power Factor> 0.99
• Efficiency: 87% @100VAC, 92% @ 220VAC
• Noise level < 45dB
• Protection Level: IP67
• CAN bus with auxiliary 12Vdc supply, can extend three colored LEDs
• Charging protection below 0 ⁰C for Lithium (LI) Chargers
• Temperature compensation of Lead Acid (LA) chargers

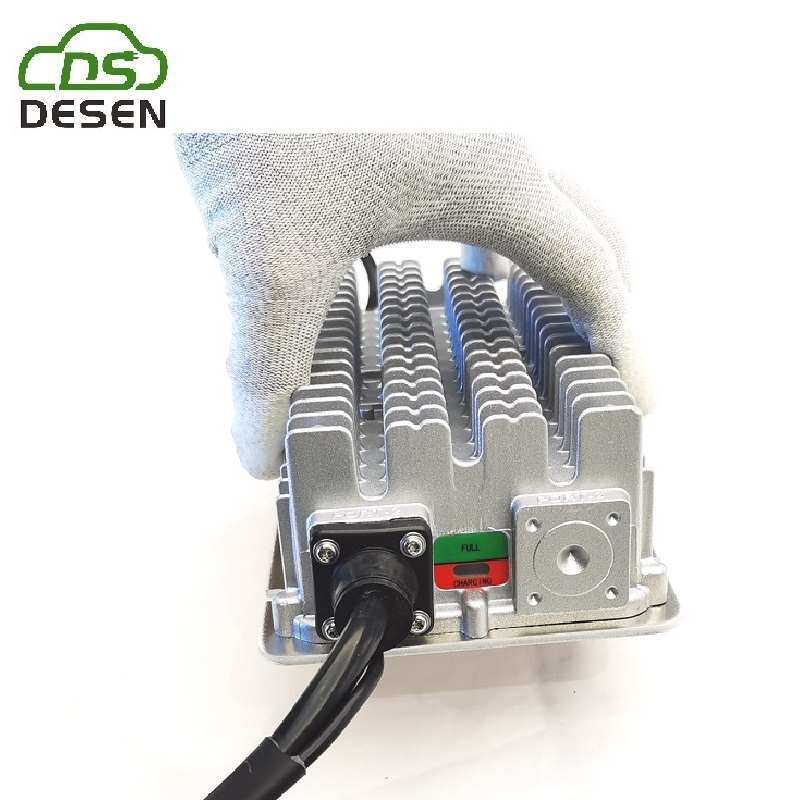

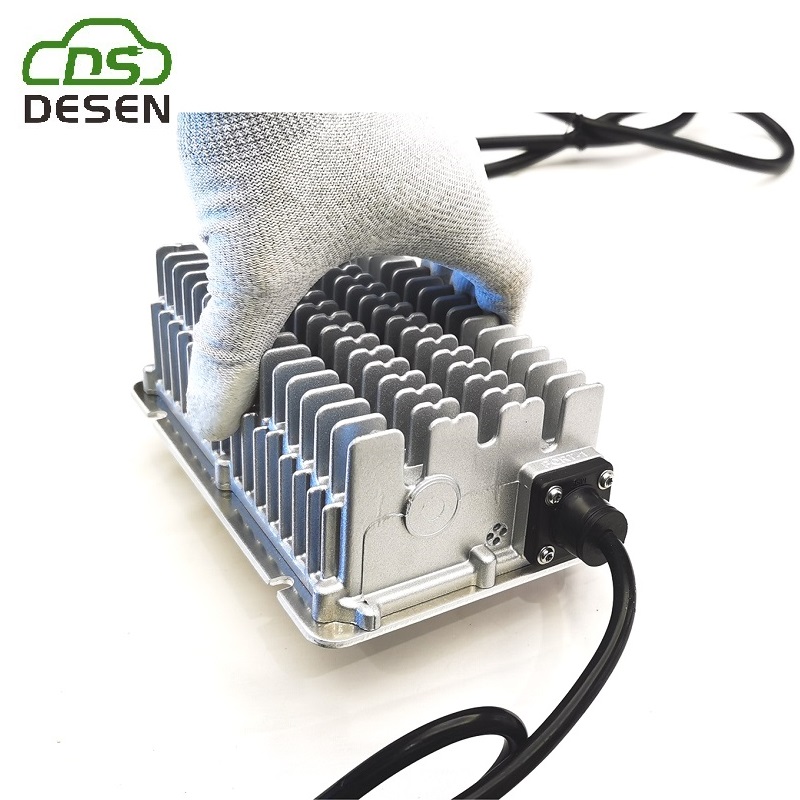

• Details Specification, please press EV Battery Charger to download Integrated die casting structure, pouring Sealed inside the charger, good performance in vibration, active heating dissipation, high reliability and long life time, it can be adopted in hostile environment.

Detail product specification view, please press EV Battery Charger  download!

GENERAL

• Dimensions: 204.5x123x64.5 mm
• N.W / G.W: 1.5kg / 1.8kg
• Warranty: 2 Years
