Isolated DC Converter

  • 40~90V to 24V 1A~20A series Isolated DC Converter
  • 40~90V to 24V 1A~20A series Isolated DC Converter
  • 40~90V to 24V 1A~20A series Isolated DC Converter
  • 40~90V to 24V 1A~20A series Isolated DC Converter
  • 40~90V to 24V 1A~20A series Isolated DC Converter
40~90V to 24V 1A~20A series Isolated DC Converter40~90V to 24V 1A~20A series Isolated DC Converter40~90V to 24V 1A~20A series Isolated DC Converter40~90V to 24V 1A~20A series Isolated DC Converter40~90V to 24V 1A~20A series Isolated DC Converter

40~90V to 24V 1A~20A series Isolated DC Converter

  • Brand: ADSTech
  • Quality: Meet RoHS/ CE Standard
  • Conversion efficiency: 91~93%
  • Protection level: IP67
  • Product description: 40~90V to 24V 1A~20A series Isolated DC Converter are designed and manufactured by ADS Tech. company in China
  • INQUIRY

     The ADS series Isolated dc converter (dc power supply) is consist of Bridge drive switch, PWM pulse circuit, power transformer and rectifier filter circuit, topological structure design and ACC control function guarantee a safety application and high transfer efficiency.

Isolated DC/dc converters typically use a transformer to electrically isolate the output from the input of the power stage, if the input and output has a big voltage different(>30V), the isolated dc/dc converter is good selection for using facilities protection.

The Isolated dc converters are widely used in Military, Avionics, Boat, Yacht, Bus, Vehicles, Golf Cart , Forklift, e-sweeper, all kind of automotive, posts and telecommunications, communications, electricity, solar system,coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV ,AGV, Robot, IoT and other fields. If you can not find a suitable model, we can customize it for you


FEATURES

1.  Conversion efficiency > 88% @72Vin,12Vout

2.  Pouring Sealed inside, Die-cast aluminum shell

3.  Isolated between input and output

4.  Anti-Quakeand dust

5.  Protection level: IP55

6.  Famous key components brand

7.  PWM technology and IRF high power transistor

8.  Sufficient power with synchronous rectification technology.

9.  Over-voltage, over current, short-circuits, over-temperature protection and auto recovery function.

10.  Easy installation, Convenient for using and transportation

11.  Warranty: 2 Year


SPECIFICATION

Model Description Input Voltage Output Voltage Convert Efficiency Power consumption Ripple & noise
Dimension
(mm)

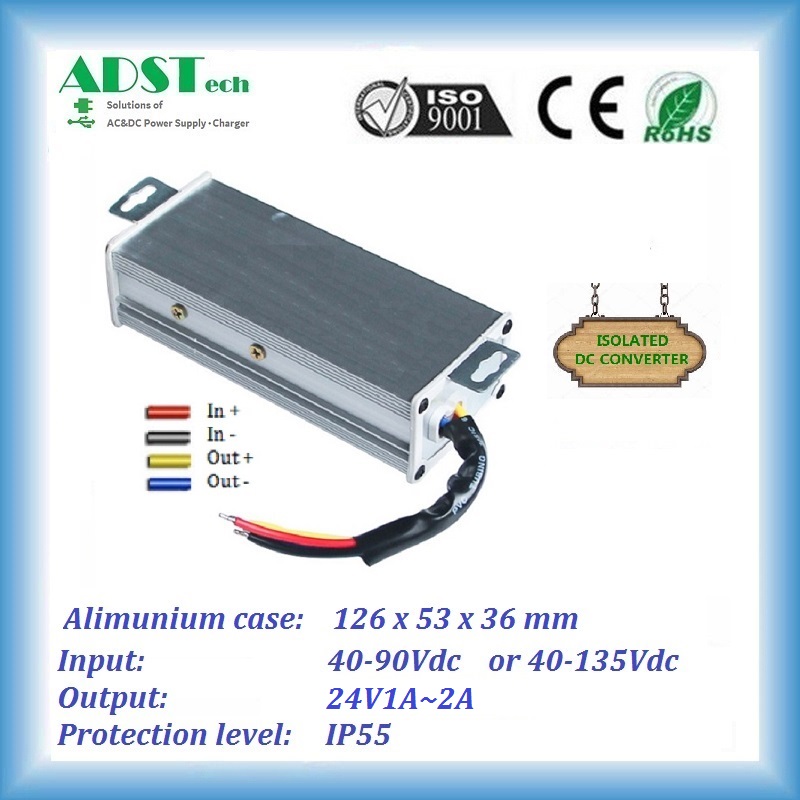

ADSI4090T24-01AL Isolated 40~90Vdc to 24Vdc 1A 40-90V 24V 88% 200mA 200mV 126x53x36mm
ADSI4090T24-02AL Isolated 40~90Vdc to 24Vdc 2A 40-90V 24V 88% 200mA 200mV 126x53x36mm

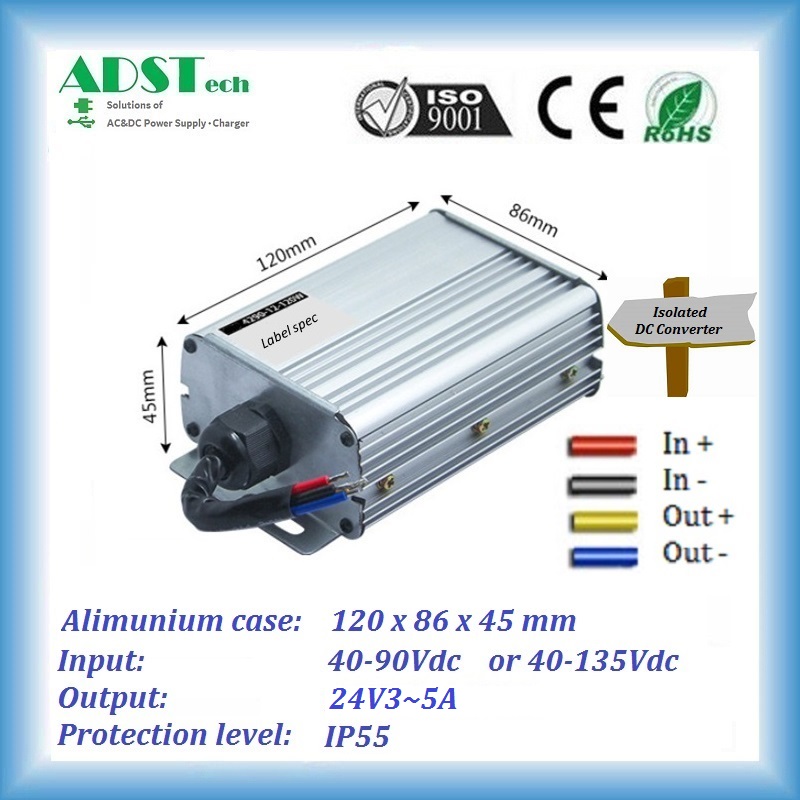

ADSI4090T24-03AL Isolated 40~90Vdc  to 24Vdc 3A 40-90V 24V 88% 200mA 200mV 120x86x45mm
ADSI4090T24-04AL Isolated 40~90Vdc  to 24Vdc 4A 40-90V 24V 88% 250mA 200mV 120x86x45mm
ADSI4090T24-05AL Isolated 40~90Vdc  to 24Vdc 5A 40-90V 24V 88% 250mA 200mV 120x86x45mm

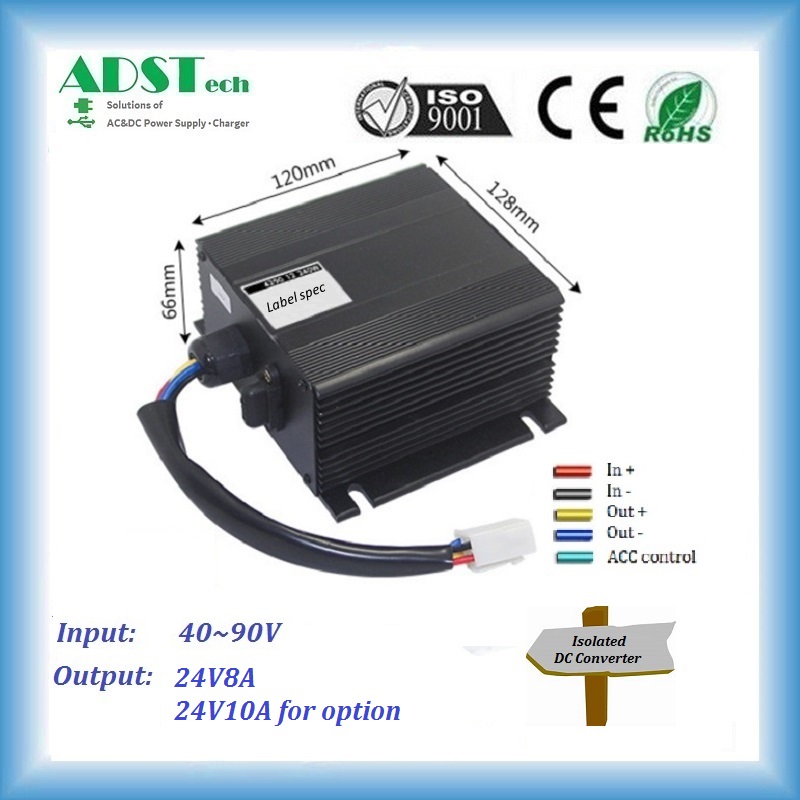

ADSI4090T24-08AL Isolated 40~90Vdc  to 24Vdc 8A 40-90V 24V 88% 250mA 200mV 120x128x66mm
ADSI4090T24-10AL Isolated 40~90Vdc  to 24Vdc 10A 40-90V 24V 88% 250mA 200mV 120x128x66mm

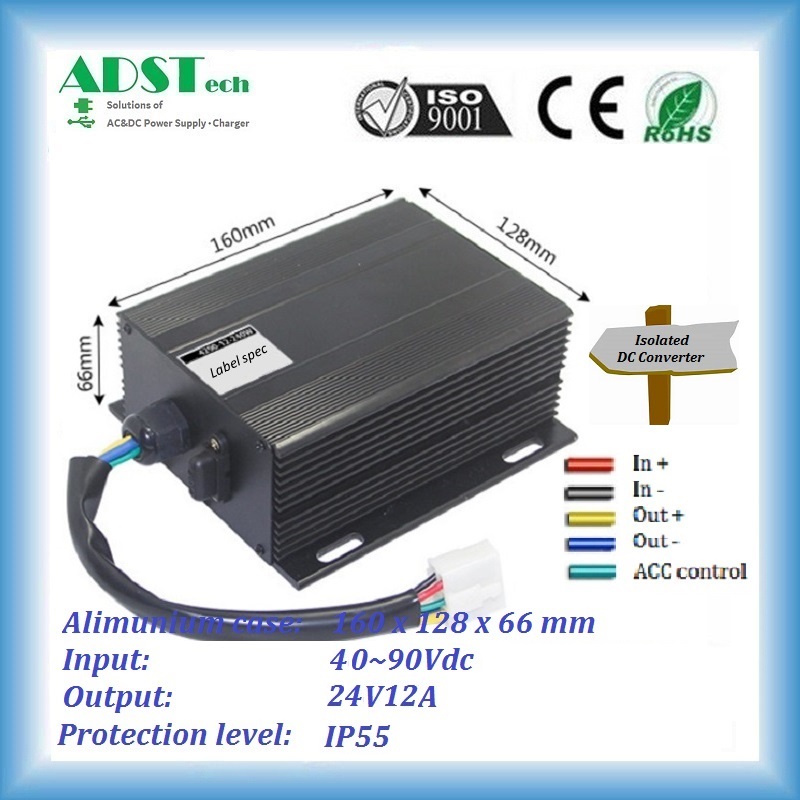

ADSI4090T24-12AL Isolated 40~90Vdc  to 24Vdc 12A 40-90V 24V 88% 250mA 200mV 160x128x66mm
ADSI4090T24-16AL Isolated 40~90Vdc  to 24Vdc 16A 40-90V 24V 88% 300mA 200mV 200x128x66mm

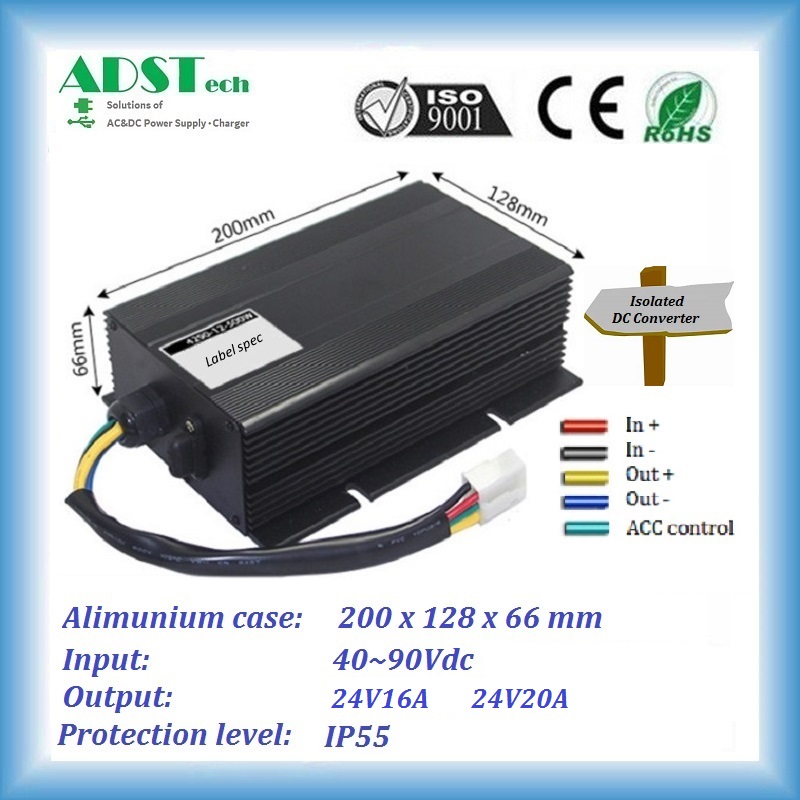

ADSI4090T24-20AL Isolated 40~90Vdc  to 24Vdc 20A 40-90V 24V 88% 300mA 200mV 200x128x66mm


USER ATTENTION

1.  In strict accordance with the polarity to connect, input positive is Red (+), negative is Black (-), reverse connect will damage the converter, output positive is Yellow (+),negative is Blue (-) , Green(ACC control wire),reverse connect will damage the converter or using facility, especially the grounding of input and output isn't common.

2.  In order to ensure the converter can get high efficiency output voltage and power, please make sure the sufficient input current and voltage supply.

3.  If the multi-output application, please balance each of the load, please don’t tie the entire load together.

4.  If the load long time work over 80% of rated power, need to lock the converter tightly with extend metal for heat dissipation, if the load power under or equal 80%, shall be more reliable and safe.

5.   The ACC control wire use to connect the outside switcher, to control the converter on or off.

6.   The converter can't use to charge battery
