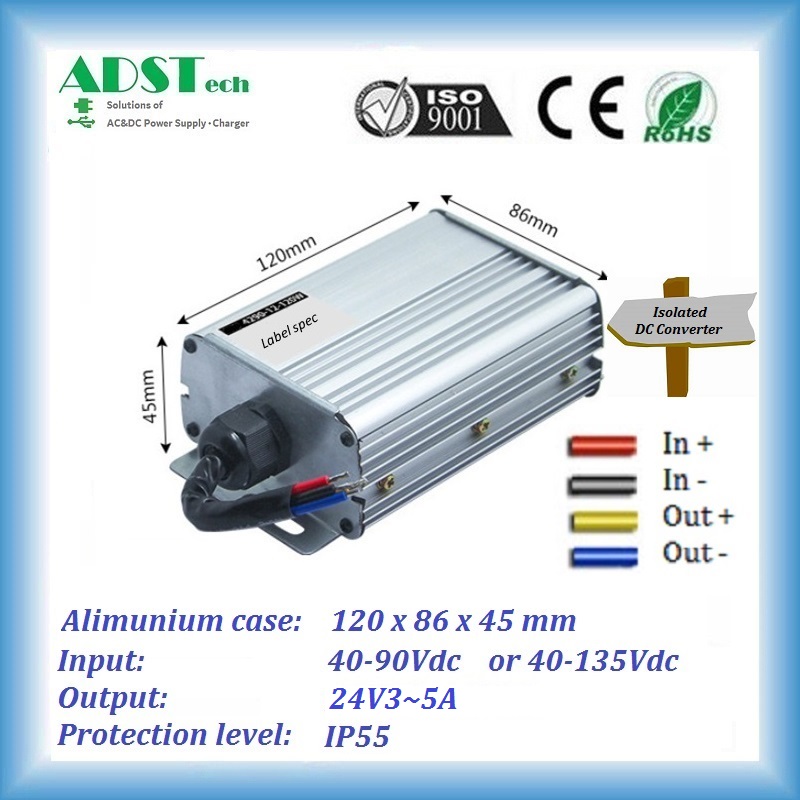

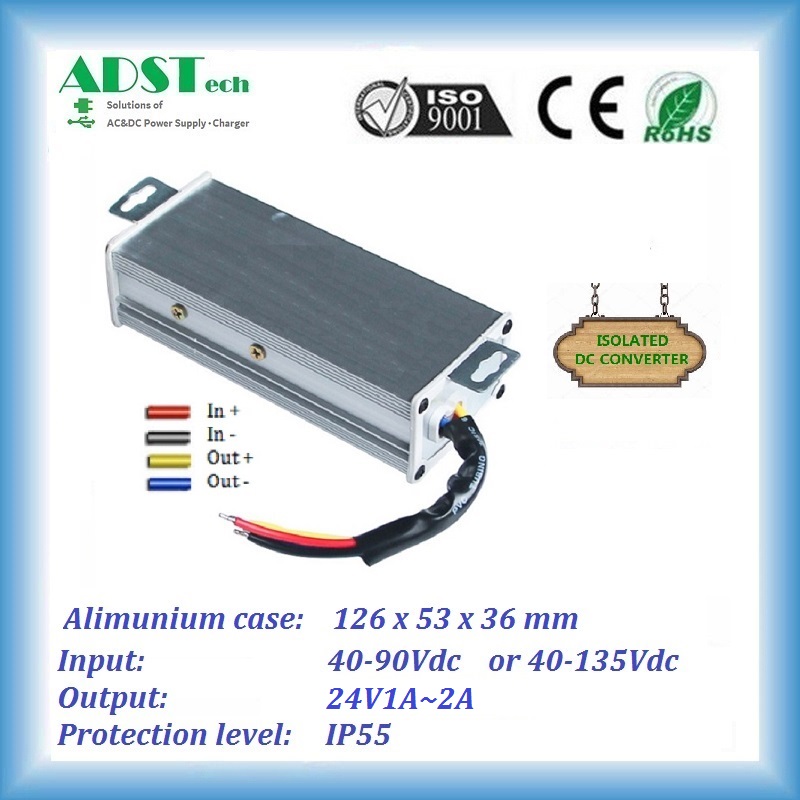

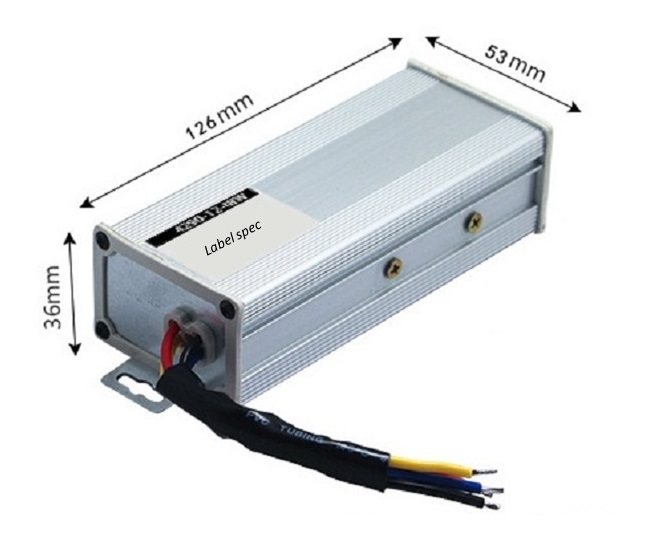

40~135V to 24V 1A~5A series Isolated DC Converter

     The ADS series Isolated dc converter (dc power supply) is consist of Bridge drive switch, PWM pulse circuit, power transformer and rectifier filter circuit, topological structure design and ACC control function guarantee a safety application and high transfer efficiency.

Isolated DC/dc converters typically use a transformer to electrically isolate the output from the input of the power stage, if the input and output has a big voltage different(>30V), the isolated dc/dc converter is good selection for using facilities protection.

The Isolated dc converters are widely used in Military, Avionics, Boat, Yacht, Bus, Vehicles, Golf Cart , Forklift, e-sweeper, all kind of automotive, posts and telecommunications, communications, electricity, solar system,coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV ,AGV, Robot, IoT and other fields. If you can not find a suitable model, we can customize it for you

FEATURES

1.  Conversion efficiency > 88% @72Vin,12Vout

2.  Pouring Sealed inside, Die-cast aluminum shell

3.  Isolated between input and output

4.  Anti-Quakeand dust

5.  Protection level: IP55

6.  Famous key components brand

7.  PWM technology and IRF high power transistor

8.  Sufficient power with synchronous rectification technology.

9.  Over-voltage, over current, short-circuits, over-temperature protection and auto recovery function.

10.  Easy installation, Convenient for using and transportation

11.  Warranty: 2 Year

SPECIFICATION

USER ATTENTION

1.  In strict accordance with the polarity to connect, input positive is Red (+), negative is Black (-), reverse connect will damage the converter, output positive is Yellow (+),negative is Blue (-) , Green(ACC control wire),reverse connect will damage the converter or using facility, especially the grounding of input and output isn't common.

2.  In order to ensure the converter can get high efficiency output voltage and power, please make sure the sufficient input current and voltage supply.

3.  If the multi-output application, please balance each of the load, please don’t tie the entire load together.

4.  If the load long time work over 80% of rated power, need to lock the converter tightly with extend metal for heat dissipation, if the load power under or equal 80%, shall be more reliable and safe.

5.   The ACC control wire use to connect the outside switcher, to control the converter on or off.

6.   The converter can't use to charge battery

CUSTOMER SERVICES

Warranty is 2 years, free maintenance service will be offered when there is quality problem since the date of purchase.

If maintenance or adjustment is needed within guarantee period and in the scope of our warranty, please contact our service center

The expense will be absorbed by customer side if any of the following situations happens:

1. Fault was due to maintenance or adjustment without checking or permission of our factory.

2. Fault was caused by manmade, or disassemble by customer side or use of overload, or other natural disasters within the warranty period.

3. Converter was burnt because of incorrect usage of power supply or too high current.

All products have been checked and packaged with ESD bag in good condition before dispatch, in case the item was damaged, please feedback us within 30 days of receipt, we will provide the free replacement, no refunds are offered.

Please contact us through email : services@charger-connector.com , we will response you within 24-48 hours.

OEM:

1. LOGO and Label can be customized, please offer us the model number and logo original file.

2.  Parameters and functions can be customized, please offer the details

4. Package can be customized, please provide us the original file.

Payment Terms :

T/T in advance, PayPal, Alipay

Lead Time:

1. Customized samples will be delivered from our factory within 20 working days.

2. General orders will be delivered from our factory within 3~7 working days.

3.  Big orders(over 10Kpcs) will be delivered from our factory within 10~25 working days
